ISO7421A Series KZE-SF
ISO7421A Series » KZE-SF

Pictures available of ISO7421A Series:

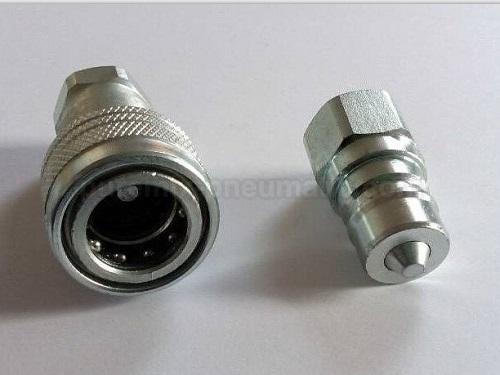

KZE-SF

ISO7421A Series



Features


1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications,within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. KZE Series couplings interchange with couplings meeting ISO 7241-1,Series A.


Applications


This Series brings to the industry a proven sesing for use on construction equipment,forestry equipment,agricultural machinery,oil tools,steel mail machinery,and other demanding hydraulic applications.


Enquiry Now

ISO7421A Series Details

KZE Series Hydraulic Quick Couplings(Steel)
Specifications
Body size (in)
1/4 3/8 1/2 3/4 1
Rated Pressure (Bar)
350 300 300 250 200
Material: Carbon steel
Standard seal material: NBR (other material is available on request)
Temperature Range (Std seals): -20°C to +80°C





Part No. Thread size BSPP A
Overall Length (mm.)
B Exposed Length (mm.) C
Hex
Size
(mm.)
D
Largest Diameter (mm.)
Part No. Thread size NPT A
Overall Length (in.)
B Exposed Length (in.) C
Hex Size (in.)
D
Largest Diameter (in.)
KZE-01PF G1/8 32.0 15.0 14.0 17.0 KZE-N01PF NPT1/8 1.27 0.58 0.56 0.65
KZE-02PF G1/4 32.0 15.0 19.0 22.0 KZE-N02PF NPT1/4 1.27 0.58 0.75 0.87
KZE-03PF G3/8 37.0 18.0 22.0 26.0 KZE-N03PF NPT3/8 1.47 0.72 0.88 1.01
KZE-04PF G1/2 46.0 20.0 27.0 31.0 KZE-N04PF NPT1/2 1.82 0.78 1.06 1.23
KZE-06PF G3/4 58.0 30.0 35.0 40.0 KZE-N06PF NPT3/4 2.29 1.18 1.38 1.59
KZE-08PF G1 66.0 34.0 41.0 48.0 KZE-N08PF NPT1 2.58 1.34 1.62 1.88
KZE-10PF G1 1/4 75.0 36.0 54.0 59.0 KZE-N10PF NPT1 1/4 2.95 1.41 2.12 2.32
KZE-12PF G1 1/2 86.0 38.0 60.0 68.0 KZE-N12PF NPT1 1/2 3.38 1.49 2.36 2.67
KZE-16PF G2 100.0 77.0 77.0 84.0 KZE-N16PF NPT2 3.93 3.03 3.03 3.30



Part No. Thread size BSPP E
Overall Length (mm.)
F
Hex
Size
(mm.)
G
Largest Diameter (mm.)
Part No. Thread size NPT E
Overall Length (in.)
F
Hex
Size
(in.)
G
Largest Diameter (in.)
KZE-01SF G1/8 47.0 22.0 27.0 KZE-N01SF NPT1/8 1.85 0.88 1.08
KZE-02SF G1/4 47.0 22.0 27.0 KZE-N02SF NPT1/4 1.85 0.88 1.08
KZE-03SF G3/8 55.0 27.0 32.0 KZE-N03SF NPT3/8 2.18 1.06 1.27
KZE-04SF G1/2 70.0 32.0 39.0 KZE-N04SF NPT1/2 2.75 1.25 1.52
KZE-06SF G3/4 85.0 41.0 48.0 KZE-N06SF NPT3/4 3.38 1.62 1.90
KZE-08SF G1 104.0 48.0 54.0 KZE-N08SF NPT1 4.11 1.88 2.14
KZE-10SF G1 1/4 110.0 54.0 69.0 KZE-N10SF NPT1 1/4 4.33 2.12 2.71
KZE-12SF G1 1/2 128.0 60.0 82.0 KZE-N12SF NPT1 1/2 5.03 2.36 3.22
KZE-16SF G2 153.0 77.0 100.0 KZE-N16SF NPT2 6.02 3.03 3.93
