ISO7421A Series KZESS-PF
ISO7421A Series » KZESS-PF

Pictures available of ISO7421A Series:

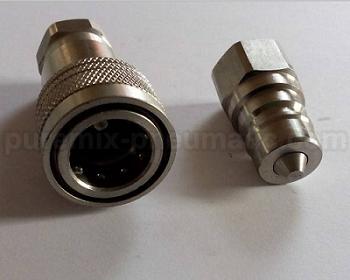

KZESS-PF

ISO7421A Series



Features

1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications,within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. KZE Series couplings interchange with couplings meeting ISO 7241-1,Series A.


Applications

This Series brings to the industry a proven sesing for use on construction equipment,forestry equipment,agricultural machinery,oil tools,steel mail machinery,and other demanding hydraulic applications.


Enquiry Now

ISO7421A Series Details



KZESS Series Hydraulic Quick Couplings(Stainless Steel)
Specifications
Body size (in)
1/4 3/8 1/2 3/4 1
Rated Pressure (Bar)
150 100 100 100 75
Material: Stainless Steel
Standard seal material: NBR (other material is available on request)
Temperature Range (Std seals): -20°C to +80°C



Part No. Thread size BSPP A Overall Length (mm.) B Exposed Length (mm.) C
Hex Size
(mm.)
D
Largest Diameter (mm.)
Part No. Thread size NPT A Overall Length (in.) B Exposed Length (in.) C
Hex Size (in.)
D
Largest Diameter (in.)
KZESS-01PF G1/8 32.0 15.0 14.0 17.0 KZESS-N01PF NPT1/8 1.27 0.58 0.56 0.65
KZESS-02PF G1/4 32.0 15.0 19.0 22.0 KZESS-N02PF NPT1/4 1.27 0.58 0.75 0.87
KZESS-03PF G3/8 37.0 18.0 22.0 26.0 KZESS-N03PF NPT3/8 1.47 0.72 0.88 1.01
KZESS-04PF G1/2 46.0 20.0 27.0 31.0 KZESS-N04PF NPT1/2 1.82 0.78 1.06 1.23
KZESS-06PF G3/4 58.0 30.0 35.0 40.0 KZESS-N06PF NPT3/4 2.29 1.18 1.38 1.59
KZESS-08PF G1 66.0 34.0 41.0 48.0 KZESS-N08PF NPT1 2.58 1.34 1.62 1.88
KZESS-10PF G1 1/4 75.0 36.0 54.0 59.0 KZESS-N10PF NPT1 1/4 2.95 1.41 2.12 2.32
KZESS-12PF G1 1/2 86.0 38.0 60.0 68.0 KZESS-N12PF NPT1 1/2 3.38 1.49 2.36 2.67
KZESS-16PF G2 100.0 77.0 77.0 84.0 KZESS-N16PF NPT2 3.93 3.03 3.03 3.30



Part No. Thread size BSPP E
Overall Length (mm.)
F
Hex
Size
(mm.)
G
Largest Diameter (mm.)
Part No. Thread size NPT E
Overall Length (in.)
F
Hex
Size
(in.)
G
Largest Diameter (in.)
KZESS-01SF G1/8 47.0 22.0 27.0 KZESS-N01SF NPT1/8 1.85 0.88 1.08
KZESS-02SF G1/4 47.0 22.0 27.0 KZESS-N02SF NPT1/4 1.85 0.88 1.08
KZESS-03SF G3/8 55.0 27.0 32.0 KZESS-N03SF NPT3/8 2.18 1.06 1.27
KZESS-04SF G1/2 70.0 32.0 39.0 KZESS-N04SF NPT1/2 2.75 1.25 1.52
KZESS-06SF G3/4 85.0 41.0 48.0 KZESS-N06SF NPT3/4 3.36 1.62 1.90
KZESS-08SF G1 104.0 48.0 54.0 KZESS-N08SF NPT1 4.11 1.88 2.14
KZESS-10SF G1 1/4 110.0 54.0 69.0 KZESS-N10SF NPT1 1/4 4.33 2.12 2.71
KZESS-12SF G1 1/2 128.0 60.0 82.0 KZESS-N12SF NPT1 1/2 5.03 2.36 3.22
KZESS-16SF G2 153.0 77.0 100.0 KZESS-N16SF NPT2 6.02 3.03 3.93
