Hydraulic quick coupling KVV
Hydraulic quick coupling  » KVV

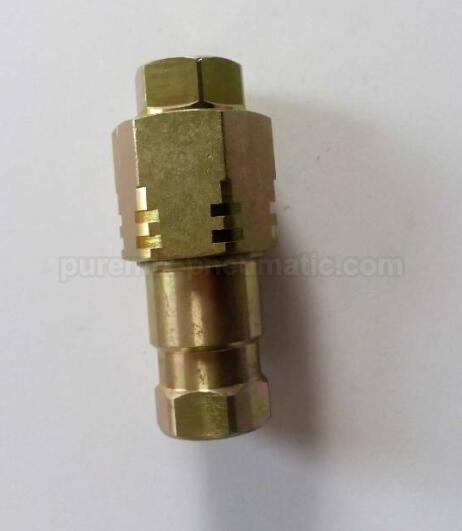

Pictures available of Hydraulic quick coupling :

KVV

Hydraulic quick coupling



Features





1. Machined from solid steel barstock for durability.
2. The QKTL Series employs a threaded sleeve locking mechanism,mates with matching male threads on the nipple.The two halves must be manually threaded together for connection.
3. Hard,chrome alloy balls are used for valving. They a spring loaded for positive seating of the valve.
4. The valve provides a metal-to-metal seal between the ball and a coined seat.
5. The body seal is polyurethane which resists high pressure extrusion.
6. A threaded valve retainer provides a valves stop that assures positive valve alignment.





Applications



Hydraulic quick coupling -KVV




Enquiry Now

Hydraulic quick coupling Details



No. Thread Size BSPP E
Overall Length (mm.)
F
Hex
Size (mm.)
G
Largest Diameter (mm.)
Part No. Thread Size NPT E
Overall Length (in.)
F
Hex
Size
(in.)
G
Largest Diameter (in.)
KVV-02SF G1/4 59.7 27 30 KVV-N02SF NPT1/4 2.35 1.06 1.18
KVV-03SF G3/8 71.9 34 38 KVV-N03SF NPT3/8 2.83 1.34 1.5
KVV-04SF G1/2 78.7 38 42 KVV-N04SF NPT1/2 3.1 1.5 1.65
KVV-06SF G3/4 105.6 50 55 KVV-N06SF NPT3/4 4.16 1.97 2.17
Part No. Thread Size BSPP A
Overall Length (mm.)
B Exposed Length (mm.) C
Hex
Size (mm.)
D
Largest Diameter (mm.)
Part No. Thread Size NPT A
Overall Length (in.)
B Exposed Length (in.) C
Hex Size (in.)
D
Largest Diameter (in.)
KVV-02PF G1/4 33   19.0 14.1 QKTL-N02PF NPT1/4 1.3   0.75 0.56
KVV-03PF G3/8 41   24.0 18.9 QKTL-N03PF NPT3/8 1.61   0.94 0.74
KVV-04PF G1/2 49   27 20.5 QKTL-N04PF NPT1/2 1.93   1.06 0.81
KVV-06PF G3/4 62   34 27.9 QKTL-N06PF NPT3/4 2.44   0.34 1.1
