Hydraulic quick coupling QKTL-SF
Hydraulic quick coupling  » QKTL-SF

Pictures available of Hydraulic quick coupling :

QKTL-SF

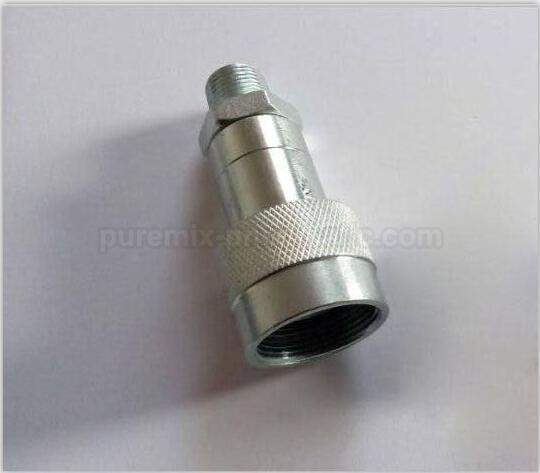

Hydraulic quick coupling



Features





1. Machined from solid steel barstock for durability.
2. The QKTL Series employs a threaded sleeve locking mechanism,mates with matching male threads on the nipple.The two halves must be manually threaded together for connection.
3. Hard,chrome alloy balls are used for valving. They a spring loaded for positive seating of the valve.
4. The valve provides a metal-to-metal seal between the ball and a coined seat.
5. The body seal is polyurethane which resists high pressure extrusion.
6. A threaded valve retainer provides a valves stop that assures positive valve alignment.





Applications





QKTL Series couplings with their threaded union locking system and precision ball-type check valves are designed for extreme high pressure applications such as found on portable hydraulic rams.See pages noted in Table of Contents for dust plugs and caps for the Parker full line of hydraulic couplings.



Enquiry Now

Hydraulic quick coupling Details



Body size (in) 1/4 3/8 1/2 3/4
Rated Pressure (Bar) 750 600
Rated flow (GPM) 3 6 8 10
Temperature Range (Std seals): -20°C to +80°C




Part No. Thread Size BSPP A
Overall Length (mm.)
B Exposed Length (mm.) C
Hex
Size (mm.)
D
Largest Diameter (mm.)
Part No. Thread Size NPT A
Overall Length (in.)
B Exposed Length (in.) C
Hex Size (in.)
D
Largest Diameter (in.)
QKTL-02PF G1/4 33.0 12.0 19.0 29.0 QKTL-N02PF NPT1/4 1.29 0.48 0.75 1.13
QKTL-03PF G3/8 40.0 13.0 24.0 32.0 QKTL-N03PF NPT3/8 1.58 0.50 0.94 1.25
QKTL-04PF G1/2 49.0 22.0 27.0 38.0 QKTL-N04PF NPT1/2 1.92 0.86 1.06 1.49
QKTL-06PF G3/4 70.0 40.0 50.0 56.0 QKTL-N06PF NPT3/4 2.75 1.57 1.96 2.20
Part No. Thread Size BSPP E
Overall Length (mm.)
F
Hex
Size (mm.)
G
Largest Diameter (mm.)
Part No. Thread Size NPT E
Overall Length (in.)
F
Hex
Size
(in.)
G
Largest Diameter (in.)
QKTL-02SF-B G1/4 60.0 21.0 29.0 QKTL-N02SF-B NPT1/4 2.38 0.81 1.13
QKTL-03SF-B G3/8 73.0 25.0 35.0 QKTL-N03SF-B NPT3/8 2.88 1.00 1.38
QKTL-04SF-B G1/2 85.0 27.0 45.0 QKTL-N04SF-B NPT1/2 3.34 1.06 1.77
QKTL-06SF-B G3/4 109.0 38.0 42.0 QKTL-N06SF-B NPT3/4 4.29 1.49 1.65
